Visible report evidence
Page hierarchy, governance framing, data-quality traceability, definition stress tests, and release-state controls are visible in the reviewed views.
Case Study 02 · Self-directed portfolio project
Synthetic Genetics Governance Report
A completed Power BI report focused on governance reporting and data storytelling, presented through four verified static report views.
Self-directed Power BI portfolio project built with synthetic genetics data to demonstrate governance reporting and data storytelling.
Verified report views
Governance questions are made visible before a release decision.
These four reviewed pages show how the report frames population scope, data quality, definition stress tests, and KPI acceptance gates. The figures are presentation evidence that establish a baseline.

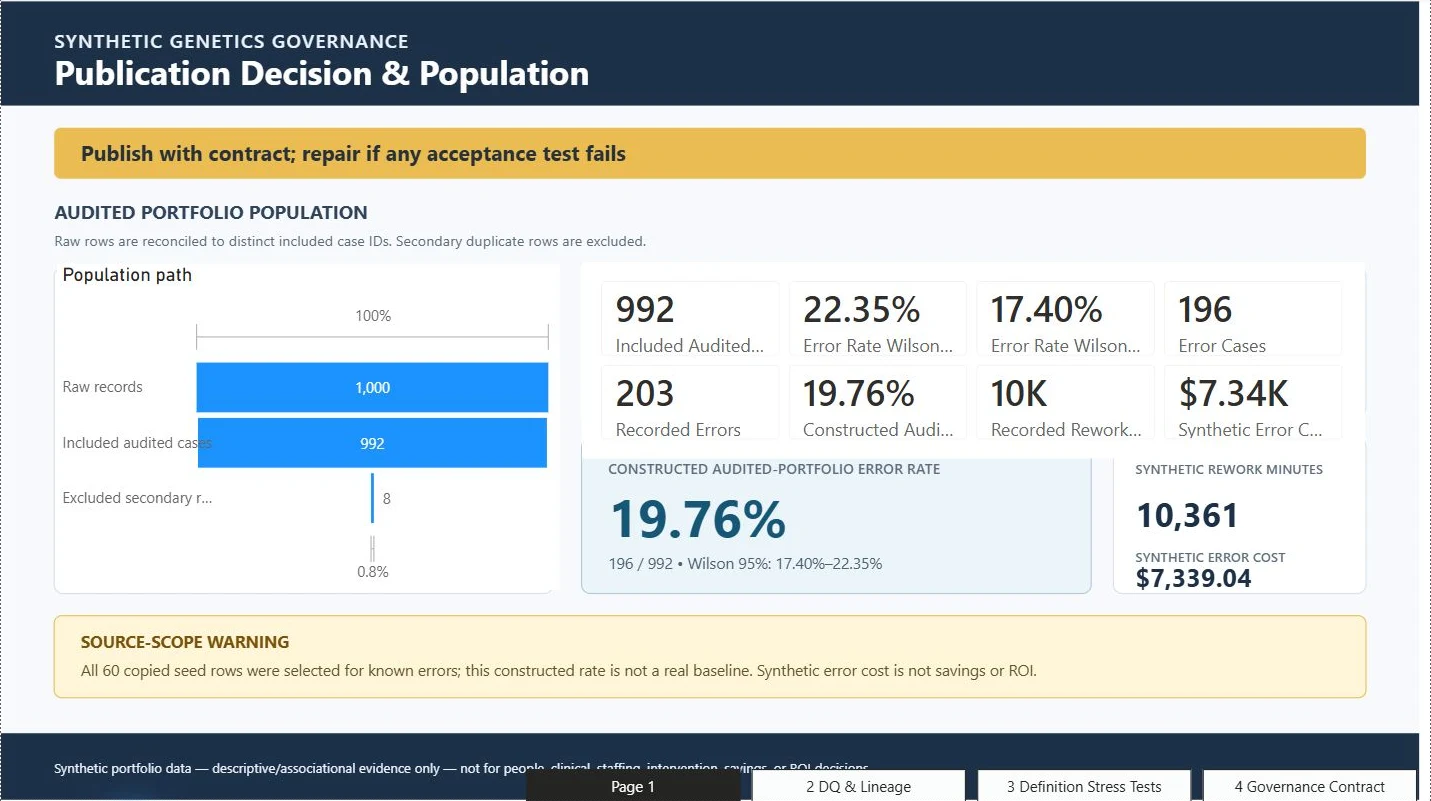

Publication decision and audited population.
The opening page turns a synthetic portfolio into a governed publication decision, reconciling 1,000 raw rows to 992 included cases and pairing the constructed rate with explicit source-scope limits.
Visible facts: The page shows 1,000 raw records, 992 included audited cases, 8 excluded secondary records and a constructed 19.76% rate.

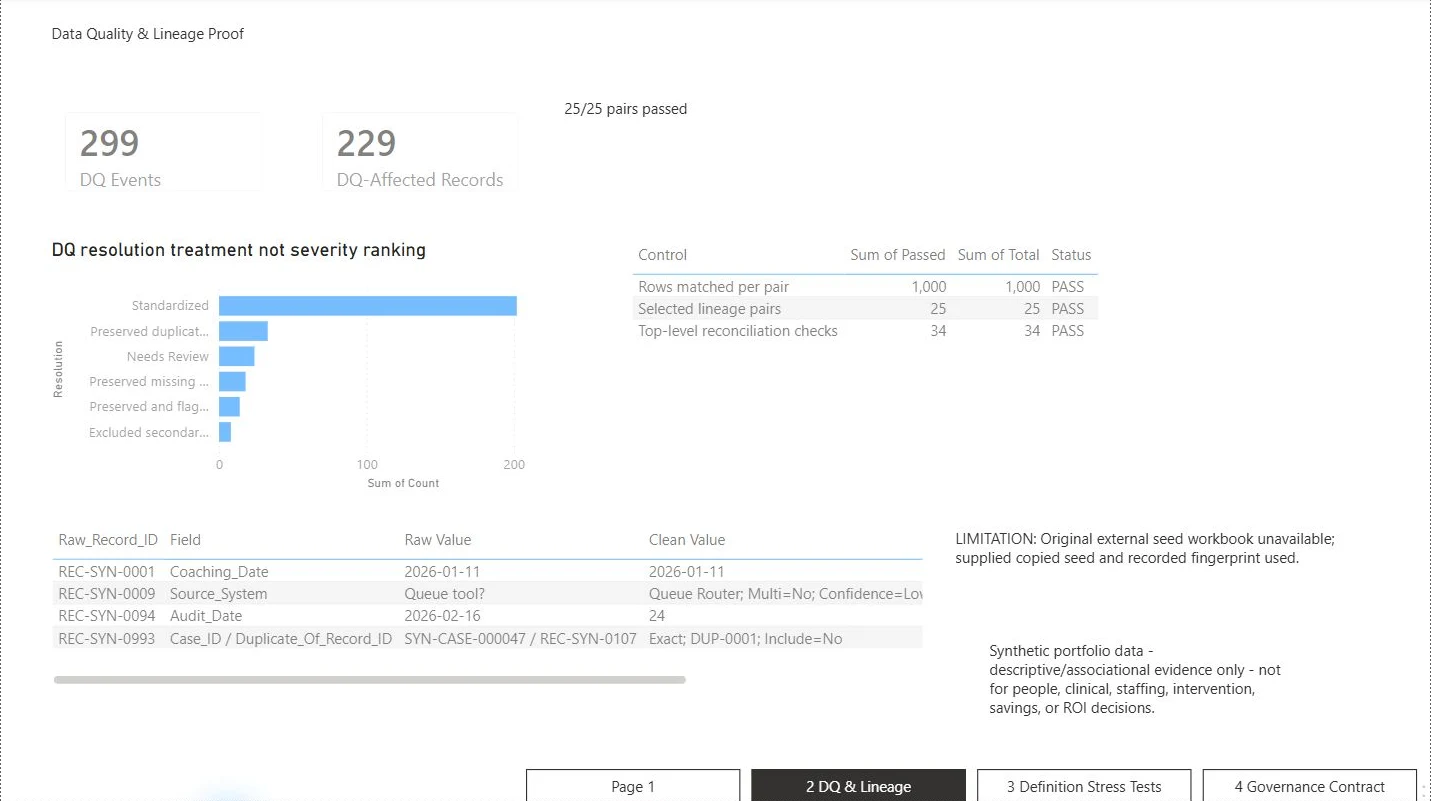

Data quality and lineage proof.
Resolution treatments, passed reconciliation controls, and raw-to-clean lineage examples make the report's data-quality handling traceable while preserving a clear source limitation.
Visible facts: The page displays 299 data-quality events, 229 affected records, 25 of 25 selected lineage pairs passed, 1,000 of 1,000 matched rows, and 34 of 34 top-level reconciliation checks passed.

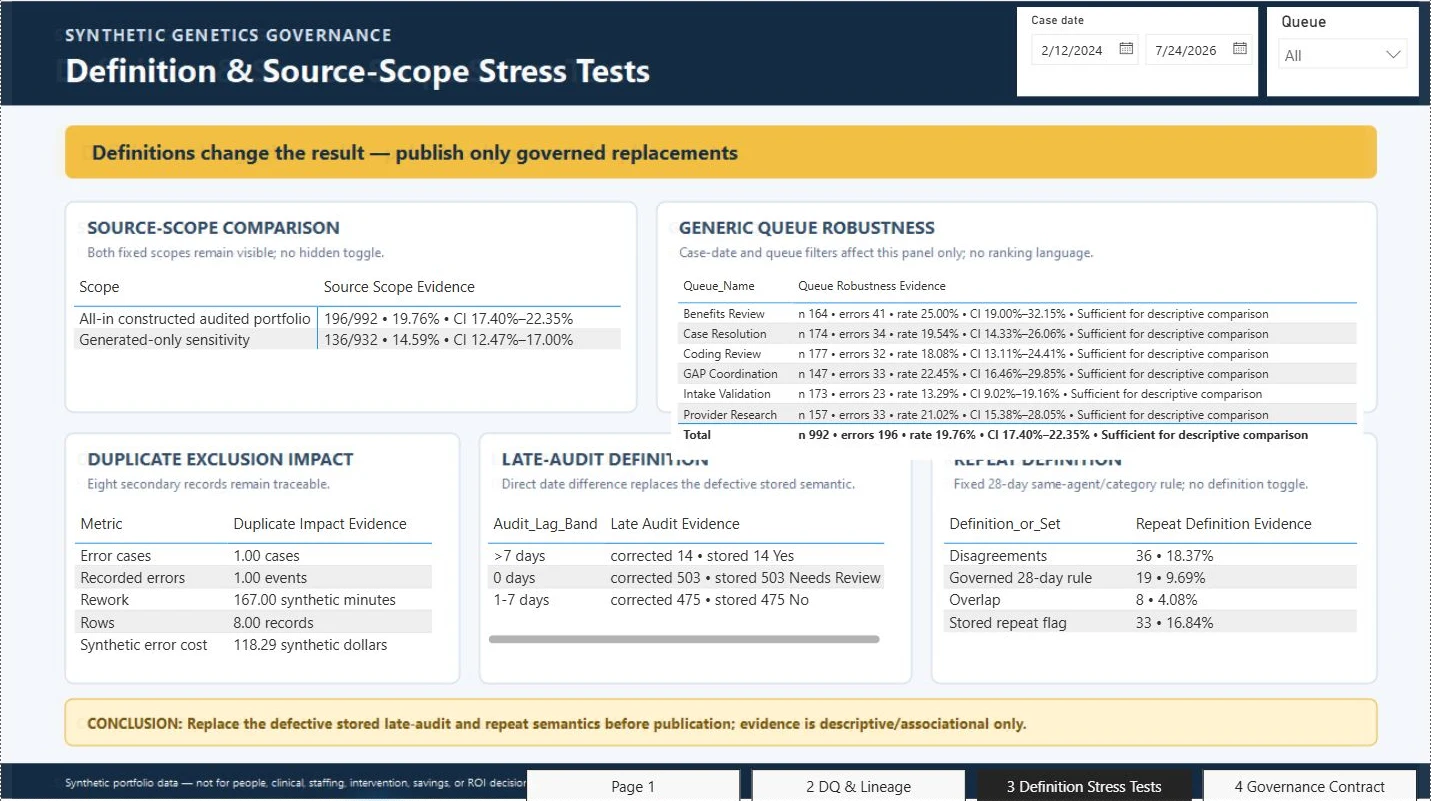

Definitions change the result.
Stress tests show how source scope and governed definitions materially change descriptive results, supporting repair of defective late-audit and repeat semantics before publication.
Visible facts: The page compares all-in constructed scope with generated-only sensitivity, shows queue robustness and duplicate impact, and includes visible Case-date and Queue slicers whose behavior was not tested.

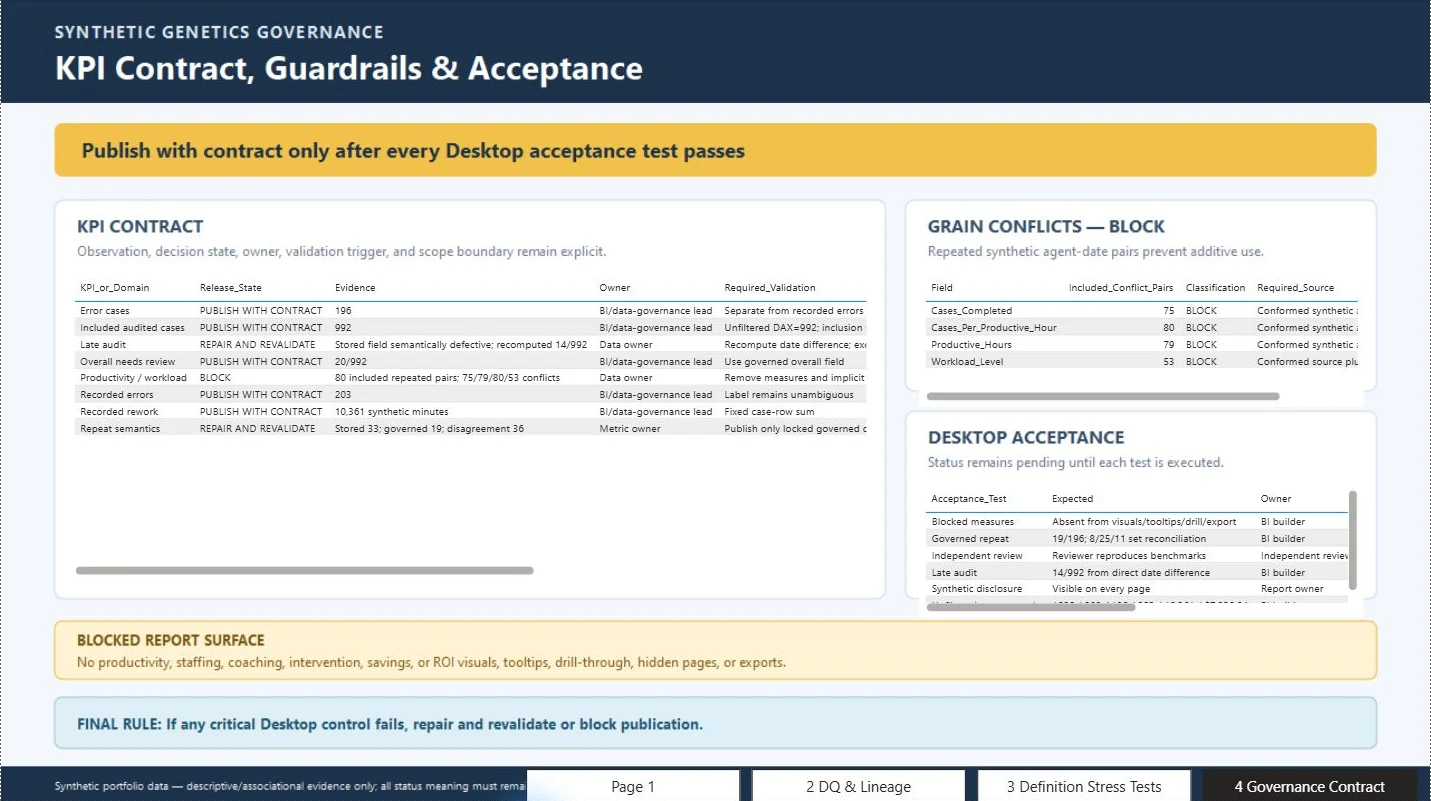

Governance contract and acceptance gates.
A KPI contract assigns release states, owners, validation requirements, grain-conflict blocks, and Desktop acceptance gates before publication.
Visible facts: The page shows publish, repair, and block states; grain-conflict blockers; Desktop acceptance checks; and a final rule requiring repair/revalidation or blocked publication when a critical control fails.
What this demonstrates
A clear separation between visible report evidence and supported capability.
Analytical and governance reasoning
The report makes source scope, definitions, reconciliation, and acceptance conditions explicit before publication.
